3D系列4.1 开始代码

我们已经在第一个系列教材中学习了创建地形的基础知识,所以开始的代码是基于第一个系列教程的。

因为我不想在LoadContent方法中写太长的代码,所以这个方法中会调用LoadVertices方法初始化顶点和索引。

现在,LoadVertices方法生成了地形的顶点和索引这些顶点包含位置和颜色信息。然后,将它们传递到CalculateNormals方法,这个方法生成正确的法线并添加到顶点中。最后,顶点和索引都存储到顶点缓冲和索引缓冲中优化性能。

在Draw方法中,它们被传递到Colored technique中,这是在Series4Effects.fx文件中定义的,这个文件包含HLSL代码,我们会在后面的章节中扩展这个代码。

我们还要使用一个高度图。

创建一个新项目将下面的代码粘贴到Game1.cs文件中。确保Game1.cs和Program.cs文件的命名空间是相同的!然后创建一个叫做Series4Effects.fx的文件,将下面的HLSL代码粘贴其中。

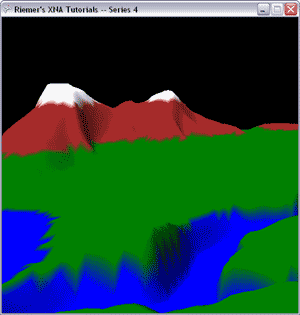

程序截图

下面是Game1.cs的代码:

using System;
using System.Collections.Generic;
using Microsoft.Xna.Framework;
using Microsoft.Xna.Framework.Audio;
using Microsoft.Xna.Framework.Content;
using Microsoft.Xna.Framework.GamerServices;
using Microsoft.Xna.Framework.Graphics;
using Microsoft.Xna.Framework.Input;
using Microsoft.Xna.Framework.Net;
using Microsoft.Xna.Framework.Storage;

 namespace XNAseries4
 {
     public struct VertexPositionNormalColored
     {
         public Vector3 Position;
         public Color Color;
         public Vector3 Normal;

         public static int SizeInBytes = 7 * 4;
         public static VertexElement[] VertexElements = new VertexElement[]
              {
                  new VertexElement( 0, 0, VertexElementFormat.Vector3, VertexElementMethod.Default, VertexElementUsage.Position, 0 ),
                  new VertexElement( 0, sizeof(float) * 3, VertexElementFormat.Color, VertexElementMethod.Default, VertexElementUsage.Color, 0 ),
                  new VertexElement( 0, sizeof(float) * 4, VertexElementFormat.Vector3, VertexElementMethod.Default, VertexElementUsage.Normal, 0 ),
              };
     }

     public class Game1 : Microsoft.Xna.Framework.Game
     {
         GraphicsDeviceManager graphics;
         GraphicsDevice device;

         int terrainWidth;
         int terrainLength;
         float[,] heightData;

         VertexBuffer terrainVertexBuffer;
         IndexBuffer terrainIndexBuffer;
         VertexDeclaration terrainVertexDeclaration;

         Effect effect;
         Matrix viewMatrix;
         Matrix projectionMatrix;

         public Game1()
         {
             graphics = new GraphicsDeviceManager(this);
             Content.RootDirectory = "Content";
         }

         protected override void Initialize()
         {
             graphics.PreferredBackBufferWidth = 500;
             graphics.PreferredBackBufferHeight = 500;

             graphics.ApplyChanges();
             Window.Title = "Riemer's XNA Tutorials -- Series 4";

             base.Initialize();
         }

         protected override void LoadContent()
         {
             device = GraphicsDevice;

            effect = Content.Load<Effect> ("Series4Effects");
            viewMatrix = Matrix.CreateLookAt(new Vector3(130, 30, -50), new Vector3(0,0,-40), new Vector3(0, 1, 0));
            projectionMatrix = Matrix.CreatePerspectiveFieldOfView(MathHelper.PiOver4, device.Viewport.AspectRatio, 0.3f, 1000.0f);

            LoadVertices();
        }

        private void LoadVertices()
        {

            Texture2D heightMap = Content.Load<Texture2D> ("heightmap");            LoadHeightData(heightMap);

            VertexPositionNormalColored[] terrainVertices = SetUpTerrainVertices();
            int[] terrainIndices = SetUpTerrainIndices();
            terrainVertices = CalculateNormals(terrainVertices, terrainIndices);
            CopyToTerrainBuffers(terrainVertices, terrainIndices);
            terrainVertexDeclaration = new VertexDeclaration(device, VertexPositionNormalColored.VertexElements);
        }

        private void LoadHeightData(Texture2D heightMap)
        {
            float minimumHeight = float.MaxValue;
            float maximumHeight = float.MinValue;

            terrainWidth = heightMap.Width;
            terrainLength = heightMap.Height;

            Color[] heightMapColors = new Color[terrainWidth * terrainLength];
            heightMap.GetData(heightMapColors);

            heightData = new float[terrainWidth, terrainLength];
            for (int x = 0; x < terrainWidth; x++)
                for (int y = 0; y < terrainLength; y++)
                {
                    heightData[x, y] = heightMapColors[x + y * terrainWidth].R;
                    if (heightData[x, y] < minimumHeight) minimumHeight = heightData[x, y];
                    if (heightData[x, y] > maximumHeight) maximumHeight = heightData[x, y];
                }

            for (int x = 0; x < terrainWidth; x++)
                for (int y = 0; y < terrainLength; y++)
                    heightData[x, y] = (heightData[x, y] - minimumHeight) / (maximumHeight - minimumHeight) * 30.0f;
        }

        private VertexPositionNormalColored[] SetUpTerrainVertices()
        {
            VertexPositionNormalColored[] terrainVertices = new VertexPositionNormalColored[terrainWidth * terrainLength];

            for (int x = 0; x < terrainWidth; x++)
            {
                for (int y = 0; y < terrainLength; y++)
                {
                    terrainVertices[x + y * terrainWidth].Position = new Vector3(x, heightData[x, y], -y);

                    if (heightData[x, y] < 6)
                        terrainVertices[x + y * terrainWidth].Color = Color.Blue;
                    else if (heightData[x, y] < 15)
                        terrainVertices[x + y * terrainWidth].Color = Color.Green;
                    else if (heightData[x, y] < 25)
                        terrainVertices[x + y * terrainWidth].Color = Color.Brown;
                    else
                        terrainVertices[x + y * terrainWidth].Color = Color.White;
                }
            }

            return terrainVertices;
        }

        private int[] SetUpTerrainIndices()
        {
            int[] indices = new int[(terrainWidth - 1) * (terrainLength - 1) * 6];
            int counter = 0;
            for (int y = 0; y < terrainLength - 1; y++)
            {
                for (int x = 0; x < terrainWidth - 1; x++)
                {
                    int lowerLeft = x + y * terrainWidth;
                    int lowerRight = (x + 1) + y * terrainWidth;
                    int topLeft = x + (y + 1) * terrainWidth;
                    int topRight = (x + 1) + (y + 1) * terrainWidth;

                    indices[counter++] = topLeft;
                    indices[counter++] = lowerRight;
                    indices[counter++] = lowerLeft;

                    indices[counter++] = topLeft;
                    indices[counter++] = topRight;
                    indices[counter++] = lowerRight;
                }
            }

            return indices;
        }

        private VertexPositionNormalColored[] CalculateNormals(VertexPositionNormalColored[] vertices, int[] indices)
        {
            for (int i = 0; i < vertices.Length; i++)
                vertices[i].Normal = new Vector3(0, 0, 0);

            for (int i = 0; i < indices.Length / 3; i++)
            {
                int index1 = indices[i * 3];
                int index2 = indices[i * 3 + 1];
                int index3 = indices[i * 3 + 2];

                Vector3 side1 = vertices[index1].Position - vertices[index3].Position;
                Vector3 side2 = vertices[index1].Position - vertices[index2].Position;
                Vector3 normal = Vector3.Cross(side1, side2);

                vertices[index1].Normal += normal;
                vertices[index2].Normal += normal;
                vertices[index3].Normal += normal;
            }

            for (int i = 0; i < vertices.Length; i++)
                vertices[i].Normal.Normalize();

            return vertices;
        }

        private void CopyToTerrainBuffers(VertexPositionNormalColored[] vertices, int[] indices)
        {
            terrainVertexBuffer = new VertexBuffer(device, vertices.Length * VertexPositionNormalColored.SizeInBytes, BufferUsage.WriteOnly);
            terrainVertexBuffer.SetData(vertices);

            terrainIndexBuffer = new IndexBuffer(device, typeof(int), indices.Length, BufferUsage.WriteOnly);
            terrainIndexBuffer.SetData(indices);
        }

        protected override void UnloadContent()
        {
        }

        protected override void Update(GameTime gameTime)
        {
            if (GamePad.GetState(PlayerIndex.One).Buttons.Back == ButtonState.Pressed)
                this.Exit();

            base.Update(gameTime);
        }

        protected override void Draw(GameTime gameTime)
        {
            float time = (float)gameTime.TotalGameTime.TotalMilliseconds / 100.0f;
            device.RenderState.CullMode = CullMode.None;

            device.Clear(ClearOptions.Target | ClearOptions.DepthBuffer, Color.Black, 1.0f, 0);
            DrawTerrain(viewMatrix);

            base.Draw(gameTime);
        }

        private void DrawTerrain(Matrix currentViewMatrix)
        {
            effect.CurrentTechnique = effect.Techniques["Colored"];
            Matrix worldMatrix = Matrix.Identity;
            effect.Parameters["xWorld"].SetValue(worldMatrix);
            effect.Parameters["xView"].SetValue(currentViewMatrix);
            effect.Parameters["xProjection"].SetValue(projectionMatrix);

            effect.Parameters["xEnableLighting"].SetValue(true);
            effect.Parameters["xAmbient"].SetValue(0.4f);
            effect.Parameters["xLightDirection"].SetValue(new Vector3(-0.5f, -1, -0.5f));

            effect.Begin();
            foreach (EffectPass pass in effect.CurrentTechnique.Passes)
            {
                pass.Begin();

                device.Vertices[0].SetSource(terrainVertexBuffer, 0, VertexPositionNormalColored.SizeInBytes);
                device.Indices = terrainIndexBuffer;
                device.VertexDeclaration = terrainVertexDeclaration;

                int noVertices = terrainVertexBuffer.SizeInBytes / VertexPositionNormalColored.SizeInBytes;
                int noTriangles = terrainIndexBuffer.SizeInBytes / sizeof(int)/3;
                device.DrawIndexedPrimitives(PrimitiveType.TriangleList, 0, 0, noVertices, 0, noTriangles);

                pass.End();
            }
            effect.End();
        }
    }
}

下面是Series4Effects.fx文件的代码:

//----------------------------------------------------
//--                                                --
//--             www.riemers.net                 --
//--         Series 4: Advanced terrain             --
//--                 Shader code                    --
//--                                                --
//----------------------------------------------------

//------- Constants --------
float4x4 xView;
float4x4 xProjection;
float4x4 xWorld;
float3 xLightDirection;
float xAmbient;
bool xEnableLighting;

//------- Texture Samplers --------

Texture xTexture;

sampler TextureSampler = sampler_state { texture = <xTexture> ; magfilter = LINEAR; minfilter = LINEAR; mipfilter=LINEAR; AddressU = mirror; AddressV = mirror;};
//------- Technique: Colored --------
struct ColVertexToPixel
{
    float4 Position     : POSITION;
    float4 Color        : COLOR0;
    float LightingFactor: TEXCOORD0;
};

struct ColPixelToFrame
{
    float4 Color : COLOR0;
};

ColVertexToPixel ColoredVS( float4 inPos : POSITION, float4 inColor: COLOR, float3 inNormal: NORMAL)
{
    ColVertexToPixel Output = (ColVertexToPixel)0;
    float4x4 preViewProjection = mul (xView, xProjection);
    float4x4 preWorldViewProjection = mul (xWorld, preViewProjection);

    Output.Position = mul(inPos, preWorldViewProjection);
    Output.Color = inColor;

    float3 Normal = normalize(mul(normalize(inNormal), xWorld));
    Output.LightingFactor = 1;
    if (xEnableLighting)
        Output.LightingFactor = saturate(dot(Normal, -xLightDirection));

    return Output;
}

ColPixelToFrame ColoredPS(ColVertexToPixel PSIn)
{
    ColPixelToFrame Output = (ColPixelToFrame)0;

    Output.Color = PSIn.Color;
    Output.Color.rgb *= saturate(PSIn.LightingFactor + xAmbient);

    return Output;
}

technique Colored
{
    pass Pass0
    {
        VertexShader = compile vs_1_1 ColoredVS();
        PixelShader = compile ps_1_1 ColoredPS();
    }
}

//------- Technique: Textured --------
struct TexVertexToPixel
{
    float4 Position     : POSITION;
    float4 Color        : COLOR0;
    float LightingFactor: TEXCOORD0;
    float2 TextureCoords: TEXCOORD1;
};

struct TexPixelToFrame
{
    float4 Color : COLOR0;
};

TexVertexToPixel TexturedVS( float4 inPos : POSITION, float3 inNormal: NORMAL, float2 inTexCoords: TEXCOORD0)
{
    TexVertexToPixel Output = (TexVertexToPixel)0;
    float4x4 preViewProjection = mul (xView, xProjection);
    float4x4 preWorldViewProjection = mul (xWorld, preViewProjection);

    Output.Position = mul(inPos, preWorldViewProjection);
    Output.TextureCoords = inTexCoords;

    float3 Normal = normalize(mul(normalize(inNormal), xWorld));
    Output.LightingFactor = 1;
    if (xEnableLighting)
        Output.LightingFactor = saturate(dot(Normal, -xLightDirection));

    return Output;
}

TexPixelToFrame TexturedPS(TexVertexToPixel PSIn)
{
    TexPixelToFrame Output = (TexPixelToFrame)0;

    Output.Color = tex2D(TextureSampler, PSIn.TextureCoords);
    Output.Color.rgb *= saturate(PSIn.LightingFactor + xAmbient);

    return Output;
}

technique Textured
{
    pass Pass0
    {
        VertexShader = compile vs_1_1 TexturedVS();
        PixelShader = compile ps_1_1 TexturedPS();
    }
}
