二维质点运动学

物理知识

上一篇文章只讨论了一维方向上的运动,如果扩展到二维一点也不难,只需在两个维度上进行同样的操作,即:

\[\begin{array}{l}{v_x} = {a_x}dt,{v_y} = {a_y}dt\\x = {v_x}dt,y = {v_y}dt\end{array}\]

以上运动学方程也可以写成矢量式:

\[\begin{array}{l}{\bf{v}} = {\bf{a}}dt\\{\bf{r}} = {\bf{v}}dt\end{array}\]

这在物理学上叫做运动独立性原理,即:一个物体同时参与几种运动,各分运动都可看成独立进行的,互不影响,物体的合运动则视为几个相互独立分运动叠加的结果。分运动和合运动之间具有:独立性、等时性、矢量性、同体性

代码实现

与上一个物理引擎相比,代码最主要的变化就是在Body类中:之前物体的位置、速度、加速度都是用一个数字(标量)表示的,现在这些属性用矢量来表示。因此首先编写一个二维矢量类Vec2,代码如下:

export class Vec2 {
    static readonly ZERO: Readonly<Vec2> = new Vec2(0, 0);
    static readonly UNITX: Readonly<Vec2> = new Vec2(1, 0);
    static readonly UNITY: Readonly<Vec2> = new Vec2(0, 1);

    x: number = 0;
    y: number = 0;

    constructor(x: number = 0, y: number = 0) {
        this.x = x;
        this.y = y;
    }

    Clone(): Vec2 {
        return new Vec2(this.x, this.y);
    }

    SetZero(): Vec2 {
        this.x = 0;
        this.y = 0;
        return this;
    }

    Set(x: number, y: number): Vec2 {
        this.x = x;
        this.y = y;
        return this;
    }

    Copy(other: Vec2): Vec2 {
        this.x = other.x;
        this.y = other.y;
        return this;
    }

    SelfAdd(v: Vec2): Vec2 {
        this.x += v.x;
        this.y += v.y;
        return this;
    }

    AddV(v: Vec2): Vec2 {
        return new Vec2(this.x + v.x, this.y + v.y);
    }

    SelfSub(v: Vec2): Vec2 {
        this.x -= v.x;
        this.y -= v.y;
        return this;
    }

    SubV(v: Vec2): Vec2 {
        return new Vec2(this.x - v.x, this.y - v.y);
    }

    SelfMulS(s: number): Vec2 {
        this.x *= s;
        this.y *= s;
        return this;
    }

    MulS(s: number): Vec2 {
        return new Vec2(this.x * s, this.y * s);
    }

    Dot(v: Vec2): number {
        return this.x * v.x + this.y * v.y;
    }

    CrossV(v: Vec2): number {
        return this.x * v.y - this.y * v.x;
    }

    Length(): number {
        const x: number = this.x, y: number = this.y;
        return Math.sqrt(x * x + y * y);
    }

    LengthSquared(): number {
        const x: number = this.x, y: number = this.y;
        return (x * x + y * y);
    }

    Normalize(): Vec2 {
        const inv_length: number = 1 / this.Length();
        return new Vec2(this.x * inv_length, this.y * inv_length);
    }

    SelfNormalize(): Vec2 {
        const length: number = this.Length();
        if (length >= 0.001) {
            const inv_length: number = 1 / length;
            this.x *= inv_length;
            this.y *= inv_length;
        }
        return this;
    }

    SelfRotate(radians: number): Vec2 {
        const c: number = Math.cos(radians);
        const s: number = Math.sin(radians);
        const x: number = this.x;
        this.x = c * x - s * this.y;
        this.y = s * x + c * this.y;
        return this;
    }

    Rotate(radians: number): Vec2 {
        const v_x: number = this.x, v_y: number = this.y;
        const c: number = Math.cos(radians);
        const s: number = Math.sin(radians);
        return new Vec2(c * v_x - s * v_y, s * v_x + c * v_y);
    }

    SelfCrossVS(s: number): Vec2 {
        const x: number = this.x;
        this.x = s * this.y;
        this.y = -s * x;
        return this;
    }

    SelfCrossSV(s: number): Vec2 {
        const x: number = this.x;
        this.x = -s * this.y;
        this.y = s * x;
        return this;
    }

    SelfAbs(): Vec2 {
        this.x = Math.abs(this.x);
        this.y = Math.abs(this.y);
        return this;
    }

    SelfNeg(): Vec2 {
        this.x = (-this.x);
        this.y = (-this.y);
        return this;
    }

    Neg(): Vec2 {
        return new Vec2(-this.x, -this.y);
    }
}

这个类包含了矢量相加(AddV)、相减(SubV)、矢量与标量的乘法(MulS)、矢量间的点乘(Dot)、矢量间的叉乘(Cross)等方法。

有了Vec2类,就可以改写Body类了。代码如下:

export class Body {
    position: Vec2 = Vec2.ZERO;
    velocity: Vec2 = Vec2.ZERO;
    acceleration: Vec2 = Vec2.ZERO;

    private world: World;

    constructor(world: World) {
        this.world = world;
        this.acceleration.SelfAdd(world.gravity);
    }

    Integrate(dt: number) {
        this.velocity.x+=this.acceleration.x*dt;
        this.velocity.y+=this.acceleration.y*dt;
        // 相当于前两行代码
        // this.velocity.SelfAdd(this.acceleration.MulS(dt));

        this.position.x+=this.velocity.x*dt;
        this.position.y+=this.velocity.y*dt;
        // 相当于前两行代码
        //this.position.SelfAdd(this.velocity.MulS(dt));
    }
}

Body类中还有一个小小的变动:添加了一个重力加速度,而这个加速度是保存在世界中的。这可以理解为,在地球表面,所有物体都具有一个方向竖直向下的重力加速度,默认值为10 m/s2

应用

下面用物理中几个典型的平面运动来测试一下这个引擎。

1、抛体运动

所谓抛体运动,就是将物体以一定的初速度向空中抛出,仅在重力作用下物体所做的运动。

由于物体默认就自带重力加速度,因此我们只需设置它的初速度即可。代码如下:

export class test {
    world: World;
    circleBody: Body
    render: Render;
    canvas: HTMLCanvasElement;

    v: number = 200;
    alpha: number = 0;

    public constructor() {
        this.canvas = <HTMLCanvasElement>document.getElementById('canvas');
        this.render = new Render(this.canvas.getContext("2d"));

        this.world = new World();
        // 将重力加速度设置得大一点
        this.world.gravity = new Vec2(0,100);
        this.circleBody = new Body(this.world);
        this.circleBody.position = new Vec2(100, 300);
        this.circleBody.velocity = new Vec2(this.v, 0);
        this.resetBody();
        this.world.addBody(this.circleBody);

        this.Update();
    }

    private previousTime: number;         // 上一帧的开始时刻
    private elapsedTime: number;          // 每帧流逝的时间(毫秒)

    Update() {

        requestAnimationFrame(() => this.Update());

        const time: number = performance.now();
        this.elapsedTime = this.previousTime ? (time - this.previousTime) / 1000 : 0;
        this.previousTime = time;

        if (this.elapsedTime > 0) {
            this.world.step(this.elapsedTime);

            // 在边界处反弹
            if (this.circleBody.position.x < 20) {
                this.circleBody.position.x = 20;
                this.circleBody.velocity.x = -this.circleBody.velocity.x;
            }
            else if (this.circleBody.position.x > 780) {
                this.circleBody.position.x = 780;
                this.circleBody.velocity.x = -this.circleBody.velocity.x;
            }
            if (this.circleBody.position.y < 20) {
                this.circleBody.position.y = 20;
                this.circleBody.velocity.y = -this.circleBody.velocity.y;
            }
            else if (this.circleBody.position.y > 580) {
                this.circleBody.position.y = 580;
                this.circleBody.velocity.y = -this.circleBody.velocity.y;
            }
        };
        this.render.draw(this.world);
    };
}

window.onload = () => {
    var main: test = new test();
}
200m/s

2、匀速圆周运动

匀速圆周运动匀速圆周运动的加速度a与速度v时刻垂直,且满足如下关系:

\[a = \frac{{{v^2}}}{R}\]

式中R表示圆周半径。因此在代码中需要将v矢量旋转90°,将这个矢量的长度缩放为\(\frac{{{v^2}}}{R}\)的大小,即a矢量。

设做匀速圆周运动的物体速率v=200 m/s,运动半径R=200 m,由物理公式可求得T=\(\frac{{2\pi R}}{v}\)=2π s。下面的代码用来模拟这个运动:

export class test {
    world: World;
    circleBody: Body
    render: Render;
    canvas: HTMLCanvasElement;

    R: number = 200;
    v: number = 200;

    public constructor() {

        this.canvas = <HTMLCanvasElement>document.getElementById('canvas');
        this.render = new Render(this.canvas.getContext("2d"));

        this.world = new World();
        // 将重力加速度设置为0
        this.world.gravity = Vec2.ZERO;
        this.circleBody = new Body(this.world);
        this.circleBody.position = new Vec2(400, 100);
        this.circleBody.velocity = new Vec2(200, 0);
        this.world.addBody(this.circleBody);

        this.Update();
    }

    private previousTime: number;         // 上一帧的开始时刻
    private elapsedTime: number;          // 每帧流逝的时间(毫秒)

    Update() {

        requestAnimationFrame(() => this.Update());

        const time: number = performance.now();
        this.elapsedTime = this.previousTime ? (time - this.previousTime) / 1000 : 0;
        this.previousTime = time;

        if (this.elapsedTime > 0) {

            var tempV:Vec2=new Vec2();
            this.circleBody.acceleration = Vec2.RotateV(this.circleBody.velocity,Math.PI / 2,tempV)
                                .SelfNormalize().SelfMul(this.v * this.v / this.R);

            this.world.step(this.elapsedTime);
        };
        this.render.draw(this.world);
    };
}

window.onload = () => {
    var main: test = new test();
}

周期挺准的,但圆弧轨迹不断得缓慢上移,不算完美。

3、单摆

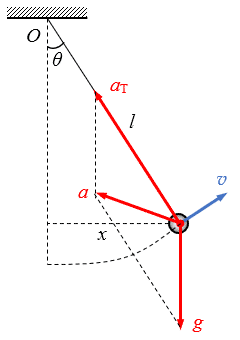

单摆单摆的运动比较复杂,摆球的速度沿圆弧切线方向,而其加速度可以这样处理:设摆长为l,摆角为θ,摆球偏离悬点的水平距离为x,则有:

\[\theta = \arcsin \frac{x}{l}\]

由牛顿第二定律可求的摆线的拉力:

\[T = mg\cos \theta + m\frac{{{v^2}}}{l}\]

对应产生的加速度:

\[{a_T} = g\cos \theta + \frac{{{v^2}}}{l}\]

而小球的加速度为aTg的矢量和。

下面的例子设重力加速度为g=100 m/s2,摆长为l=400 m,将摆球由最低点以v0=200 m/s的初速度释放,由机械能守恒定律可知最大摆角可达到60°,由单摆周期的修正公式:

\[T = 2\pi \sqrt {\frac{l}{g}} (1 + \frac{1}{4}{\sin ^2}\frac{{{\theta _m}}}{2} + \frac{9}{{64}}{\sin ^4}\frac{{{\theta _m}}}{2} + \cdots )\]

可求得周期为13.46 s。

以下代码就用来模拟这个运动并求出周期:

export class test {
    world: World;
    circleBody: Body
    render: Render;
    canvas: HTMLCanvasElement;

    theta: number = 0;
    a_T: number = 0;
    readonly l: number = 400;
    readonly grivaty: number = 100;

    public constructor() {
        this.canvas = <HTMLCanvasElement>document.getElementById('canvas');
        this.render = new Render(this.canvas.getContext("2d"));

        this.world = new World();
        this.circleBody = new Body(this.world);
        this.circleBody.position = new Vec2(400, 250);
        this.circleBody.velocity = new Vec2(200, 0);
        this.world.addBody(this.circleBody);

        this.Update();
    }

    private previousTime: number;         // 上一帧的开始时刻
    private elapsedTime: number;          // 每帧流逝的时间(毫秒)

    Update() {

        requestAnimationFrame(() => this.Update());

        const time: number = performance.now();
        this.elapsedTime = this.previousTime ? (time - this.previousTime) / 1000 : 0;
        this.previousTime = time;

        if (this.elapsedTime > 0) {

            this.theta = Math.asin((this.circleBody.position.x - 400) / this.l);
            this.a_T = this.grivaty * Math.cos(this.theta) +
                                this.circleBody.velocity.LengthSquared() / this.l;
            this.circleBody.acceleration = new Vec2(-this.a_T * Math.sin(this.theta),
                                this.grivaty - this.a_T * Math.cos(this.theta));
            this.world.step(this.elapsedTime);

        };
        this.render.draw(this.world);
    };
}

window.onload = () => {
    var main: test = new test();
}

周期求得挺准的,但运动弧线在不断地微微上移,不算完美。

文件下载(已下载 1 次)
