3D系列4.15 圆柱形Billboarding

你可以在3.11 Billboarding:在3D世界绘制2D图像使它们总是面向相机中看到Billboarding的详细解释,那个教程介绍了球形billboarding和圆柱形billboarding ,可以在CPU上计算,也可以在GPU上计算。所以,本章只简短讨论一下理论,重点放在代码的实现上。

创建了多纹理地形和水面后,现在需要在地形上放置一些树木。

我们可以通过加载一个3D模型,在地形上绘制几百次。问题是这样做帧频会大大下降甚至低于1帧/秒。

这个问题可以通过使用billboarding加以解决,billboarding是一个使用地非常广泛并十分重要的技术。Billboarding使用一个简单的2D图像代替3D模型,在树木的例子中,我们使用一张树的2D图像代替树的3D模型,它的位置与在3D世界中的位置相同。剩下的唯一一件事就是确保图像总是面朝相机,下图解释了为什么:

billboard

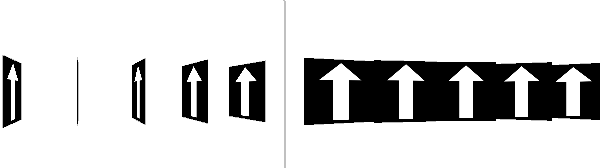

左图显示了3D世界中不同位置的5张图像,右图显示了同样的5张图像,但是面朝相机。可以想象如果图像包含树木的话,右图才是我们需要的结果。你使用两个三角形,六个顶点绘制billboard。对每个billboard,六个顶点需要包含正确的纹理坐标,但只需包含相同的位置:billboard的底边中点的位置,如下图所示。这很容易指定,因为这个位置就是树干与地形的交点。

底部中点位置

下面我们会创建一个包含位置数据的集合。这个方法以这个集合为参数,集合中的每个位置都会生成6个顶点,代码来自于3.11 Billboarding:在3D世界绘制2D图像使它们总是面向相机

private void CreateBillboardVerticesFromList(List<Vector3> treeList)
{
    VertexPositionTexture[] billboardVertices = new VertexPositionTexture[treeList.Count * 6];

    int i = 0;
    foreach (Vector3 currentV3 in treeList)
    {
        billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(0, 0));
        billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(1, 0));
        billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(1, 1));
        billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(0, 0));
        billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(1, 1));
        billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(0, 1));
    }

    treeVertexBuffer = new VertexBuffer(device, billboardVertices.Length * VertexPositionTexture.SizeInBytes, BufferUsage.WriteOnly);
    treeVertexBuffer.SetData(billboardVertices);
    treeVertexDeclaration = new VertexDeclaration(device, VertexPositionTexture.VertexElements);
}

顶点数组存储在VertexBuffer中, 我们需要在代码顶部将它作为变量: VertexBuffer treeVertexBuffer; VertexDeclaration treeVertexDeclaration; 这些顶点通过顶点着色器转换到正确的位置,这样billboards会始终面朝相机。计算的HLSL代码来自于3.11 Billboarding:在3D世界绘制2D图像使它们总是面向相机。那个教程中的位置指定为billboard 的中央,而本例中我们指定为底边中点,所以我改变了顶点着色器中这行代码:

finalPosition += (1.5f-inTexCoord.y*1.5f)*upVector;

确保加载bbEffect.fx文件并添加以下变量:

Effect bbEffect;

并在LoadContent方法中加载:

bbEffect = Content.Load<Effect> ("bbEffect");

创建一个简单的方法生成一个集合,这个集合包含一些树的位置信息:

private List<Vector3> GenerateTreePositions(VertexMultitextured[]   terrainVertices)
{
    List<Vector3> treeList = new List<Vector3> ();
    treeList.Add(terrainVertices[3310].Position);
    treeList.Add(terrainVertices[3315].Position);
    treeList.Add(terrainVertices[3320].Position);
    treeList.Add(terrainVertices[3325].Position);

    return treeList;
}

这个方法创建了一个集合,包含我在地形上随机取的4个位置。下一章我们会扩展这个方法,现在将绘制4棵树。确保在LoadVertices方法中调用这两个方法:

List<Vector3> treeList = GenerateTreePositions(terrainVertices);
CreateBillboardVerticesFromList(treeList);

我们还需要导入一张树的2D图像并添加以下变量:

Texture2D treeTexture;

在LoadTextures方法中加载:

treeTexture = Content.Load<Texture2D> ("tree");

有了effect,纹理和顶点,就做好了绘制三角形的准备。下面是绘制代码:

private void DrawBillboards(Matrix currentViewMatrix)
{
    bbEffect.CurrentTechnique = bbEffect.Techniques["CylBillboard"];
    bbEffect.Parameters["xWorld"].SetValue(Matrix.Identity);
    bbEffect.Parameters["xView"].SetValue(currentViewMatrix);
    bbEffect.Parameters["xProjection"].SetValue(projectionMatrix);
    bbEffect.Parameters["xCamPos"].SetValue(cameraPosition);
    bbEffect.Parameters["xAllowedRotDir"].SetValue(new Vector3(0, 1, 0));
    bbEffect.Parameters["xBillboardTexture"].SetValue(treeTexture);

    bbEffect.Begin();
    foreach (EffectPass pass in bbEffect.CurrentTechnique.Passes)
    {
        pass.Begin();
        device.Vertices[0].SetSource(treeVertexBuffer, 0, VertexPositionTexture.SizeInBytes);
        device.VertexDeclaration = treeVertexDeclaration;
        int noVertices = treeVertexBuffer.SizeInBytes / VertexPositionTexture.SizeInBytes;
        int noTriangles = noVertices / 3;
        device.DrawPrimitives(PrimitiveType.TriangleList, 0, noTriangles);
        pass.End();
    }
    bbEffect.End();
}

我们选择.fx文件中的圆柱形billboarding technique并设置必需的XNA-to-HLSL变量。最重要的是xAllowedRotDir变量,它指定了2D图像绕着哪根轴旋转。球形和圆柱形billboarding的不同在于:在球形billboarding中,2D图像,2D图像可以绕着所有轴旋转。而本例中我们处理的数,我们想让树绕着树干旋转,即(0,1,0) Up轴旋转。

现在在Draw method方法的最后调用这个方法:

DrawBillboards(viewMatrix);

现在运行代码,你可以看到4棵树!试着将相机在树周围移动,它们总是朝向相机的。但是你还可以看到矩形的图像,这是因为树周围的黑色边界。幸运的是,我们的树纹理包含透明信息,所以在DrawBillboards方法中使用以下代码开启alpha混合:

device.RenderState.AlphaBlendEnable = true;
device.RenderState.SourceBlend = Blend.SourceAlpha;
device.RenderState.DestinationBlend = Blend.InverseSourceAlpha;

这会开启常规的alpha混合。

finalColor=pixelShaderColor*pixelShaderAlpha+colorAlreadyPresent*(1-pixelshader)

别忘了在方法的最后关闭alpha混合,否则下一帧你的3D世界都会变得透明!

device.RenderState.AlphaBlendEnable = false;

运行代码截图如下:

程序截图

本章展示了基本的billboarding。当你绘制上百个billboards就会显示它的威力,我们会在下一章中实现一些树林。

本章的XNA代码如下,红色代码为相对于上一章改变的部分:

using System;
 using System.Collections.Generic;
 using Microsoft.Xna.Framework;
 using Microsoft.Xna.Framework.Audio;
 using Microsoft.Xna.Framework.Content;
 using Microsoft.Xna.Framework.GamerServices;
 using Microsoft.Xna.Framework.Graphics;
 using Microsoft.Xna.Framework.Input;
 using Microsoft.Xna.Framework.Net;
 using Microsoft.Xna.Framework.Storage;

 namespace XNAseries4
 {
     public struct VertexMultitextured
     {
         public Vector3 Position;
         public Vector3 Normal;
         public Vector4 TextureCoordinate;
         public Vector4 TexWeights;

         public static int SizeInBytes = (3 + 3 + 4 + 4) * sizeof(float);
         public static VertexElement[] VertexElements = new VertexElement[]
          {
              new VertexElement( 0, 0, VertexElementFormat.Vector3, VertexElementMethod.Default, VertexElementUsage.Position, 0 ),
              new VertexElement( 0, sizeof(float) * 3, VertexElementFormat.Vector3, VertexElementMethod.Default, VertexElementUsage.Normal, 0 ),
              new VertexElement( 0, sizeof(float) * 6, VertexElementFormat.Vector4, VertexElementMethod.Default, VertexElementUsage.TextureCoordinate, 0 ),
              new VertexElement( 0, sizeof(float) * 10, VertexElementFormat.Vector4, VertexElementMethod.Default, VertexElementUsage.TextureCoordinate, 1 ),
          };
     }

     public class Game1 : Microsoft.Xna.Framework.Game
     {
         GraphicsDeviceManager graphics;
         GraphicsDevice device;

         int terrainWidth;
         int terrainLength;
         float[,] heightData;

         VertexBuffer terrainVertexBuffer;
         IndexBuffer terrainIndexBuffer;
         VertexDeclaration terrainVertexDeclaration;

         VertexBuffer waterVertexBuffer;
         VertexDeclaration waterVertexDeclaration;

         VertexBuffer treeVertexBuffer;
         VertexDeclaration treeVertexDeclaration;

         Effect effect;
         Effect bbEffect;
         Matrix viewMatrix;
         Matrix projectionMatrix;
         Matrix reflectionViewMatrix;

         Vector3 cameraPosition = new Vector3(130, 30, -50);
         float leftrightRot = MathHelper.PiOver2;
         float updownRot = -MathHelper.Pi / 10.0f;
         const float rotationSpeed = 0.3f;
         const float moveSpeed = 30.0f;
         MouseState originalMouseState;

         Texture2D grassTexture;
         Texture2D sandTexture;
         Texture2D rockTexture;
         Texture2D snowTexture;
         Texture2D cloudMap;
         Texture2D waterBumpMap;
         Texture2D treeTexture;

         Model skyDome;

         const float waterHeight = 5.0f;
         RenderTarget2D refractionRenderTarget;
         Texture2D refractionMap;
         RenderTarget2D reflectionRenderTarget;
         Texture2D reflectionMap;

         Vector3 windDirection = new Vector3(0, 0, 1);

         public Game1()
         {
             graphics = new GraphicsDeviceManager(this);
             Content.RootDirectory = "Content";
         }

         protected override void Initialize()
         {
             graphics.PreferredBackBufferWidth = 500;
             graphics.PreferredBackBufferHeight = 500;

             graphics.ApplyChanges();
             Window.Title = "Riemer's XNA Tutorials -- Series 4";

             base.Initialize();
         }

         protected override void LoadContent()
         {
             device = GraphicsDevice;


            effect = Content.Load<Effect> ("Series4Effects");
            bbEffect = Content.Load<Effect> ("bbEffect");            UpdateViewMatrix();
            projectionMatrix = Matrix.CreatePerspectiveFieldOfView(MathHelper.PiOver4, device.Viewport.AspectRatio, 0.3f, 1000.0f);

            Mouse.SetPosition(device.Viewport.Width / 2, device.Viewport.Height / 2);
            originalMouseState = Mouse.GetState();


            skyDome = Content.Load<Model> ("dome"); skyDome.Meshes[0].MeshParts[0].Effect = effect.Clone(device);
            PresentationParameters pp = device.PresentationParameters;
            refractionRenderTarget = new RenderTarget2D(device, pp.BackBufferWidth, pp.BackBufferHeight, 1, device.DisplayMode.Format);
            reflectionRenderTarget = new RenderTarget2D(device, pp.BackBufferWidth, pp.BackBufferHeight, 1, device.DisplayMode.Format);

            LoadVertices();
            LoadTextures();
        }

        private void LoadVertices()
        {

            Texture2D heightMap = Content.Load<Texture2D> ("heightmap"); LoadHeightData(heightMap);
            VertexMultitextured[] terrainVertices = SetUpTerrainVertices();
            int[] terrainIndices = SetUpTerrainIndices();
            terrainVertices = CalculateNormals(terrainVertices, terrainIndices);
            CopyToTerrainBuffers(terrainVertices, terrainIndices);
            terrainVertexDeclaration = new VertexDeclaration(device, VertexMultitextured.VertexElements);

            SetUpWaterVertices();
            waterVertexDeclaration = new VertexDeclaration(device, VertexPositionTexture.VertexElements);



            List<Vector3> treeList = GenerateTreePositions(terrainVertices);            CreateBillboardVerticesFromList(treeList);

         }

         private void LoadTextures()
         {

            grassTexture = Content.Load<Texture2D> ("grass");
            sandTexture = Content.Load<Texture2D> ("sand");
            rockTexture = Content.Load<Texture2D> ("rock");
            snowTexture = Content.Load<Texture2D> ("snow");
            cloudMap = Content.Load<Texture2D> ("cloudMap");
            waterBumpMap = Content.Load<Texture2D> ("waterbump");

            treeTexture = Content.Load<Texture2D> ("tree");
         }

         private void LoadHeightData(Texture2D heightMap)
         {
             float minimumHeight = float.MaxValue;
             float maximumHeight = float.MinValue;

             terrainWidth = heightMap.Width;
             terrainLength = heightMap.Height;

             Color[] heightMapColors = new Color[terrainWidth * terrainLength];
             heightMap.GetData(heightMapColors);

             heightData = new float[terrainWidth, terrainLength];
             for (int x = 0; x < terrainWidth; x++)
                 for (int y = 0; y < terrainLength; y++)
                 {
                     heightData[x, y] = heightMapColors[x + y * terrainWidth].R;
                     if (heightData[x, y] < minimumHeight) minimumHeight = heightData[x, y];
                     if (heightData[x, y] > maximumHeight) maximumHeight = heightData[x, y];
                 }

             for (int x = 0; x < terrainWidth; x++)
                 for (int y = 0; y < terrainLength; y++)
                     heightData[x, y] = (heightData[x, y] - minimumHeight) / (maximumHeight - minimumHeight) * 30.0f;
         }

         private VertexMultitextured[] SetUpTerrainVertices()
         {
             VertexMultitextured[] terrainVertices = new VertexMultitextured[terrainWidth * terrainLength];

             for (int x = 0; x < terrainWidth; x++)
             {
                 for (int y = 0; y < terrainLength; y++)
                 {
                     terrainVertices[x + y * terrainWidth].Position = new Vector3(x, heightData[x, y], -y);
                     terrainVertices[x + y * terrainWidth].TextureCoordinate.X = (float)x / 30.0f;
                     terrainVertices[x + y * terrainWidth].TextureCoordinate.Y = (float)y / 30.0f;

                     terrainVertices[x + y * terrainWidth].TexWeights.X = MathHelper.Clamp(1.0f - Math.Abs(heightData[x, y] - 0) / 8.0f, 0, 1);
                     terrainVertices[x + y * terrainWidth].TexWeights.Y = MathHelper.Clamp(1.0f - Math.Abs(heightData[x, y] - 12) / 6.0f, 0, 1);
                     terrainVertices[x + y * terrainWidth].TexWeights.Z = MathHelper.Clamp(1.0f - Math.Abs(heightData[x, y] - 20) / 6.0f, 0, 1);
                     terrainVertices[x + y * terrainWidth].TexWeights.W = MathHelper.Clamp(1.0f - Math.Abs(heightData[x, y] - 30) / 6.0f, 0, 1);

                     float total = terrainVertices[x + y * terrainWidth].TexWeights.X;
                     total += terrainVertices[x + y * terrainWidth].TexWeights.Y;
                     total += terrainVertices[x + y * terrainWidth].TexWeights.Z;
                     total += terrainVertices[x + y * terrainWidth].TexWeights.W;

                     terrainVertices[x + y * terrainWidth].TexWeights.X /= total;
                     terrainVertices[x + y * terrainWidth].TexWeights.Y /= total;
                     terrainVertices[x + y * terrainWidth].TexWeights.Z /= total;
                     terrainVertices[x + y * terrainWidth].TexWeights.W /= total;
                 }
             }

             return terrainVertices;
         }

         private int[] SetUpTerrainIndices()
         {
             int[] indices = new int[(terrainWidth - 1) * (terrainLength - 1) * 6];
             int counter = 0;
             for (int y = 0; y < terrainLength - 1; y++)
             {
                 for (int x = 0; x < terrainWidth - 1; x++)
                 {
                     int lowerLeft = x + y * terrainWidth;
                     int lowerRight = (x + 1) + y * terrainWidth;
                     int topLeft = x + (y + 1) * terrainWidth;
                     int topRight = (x + 1) + (y + 1) * terrainWidth;

                     indices[counter++] = topLeft;
                     indices[counter++] = lowerRight;
                     indices[counter++] = lowerLeft;

                     indices[counter++] = topLeft;
                     indices[counter++] = topRight;
                     indices[counter++] = lowerRight;
                 }
             }

             return indices;
         }

         private VertexMultitextured[] CalculateNormals(VertexMultitextured[] vertices, int[] indices)
         {
             for (int i = 0; i < vertices.Length; i++)
                 vertices[i].Normal = new Vector3(0, 0, 0);

             for (int i = 0; i < indices.Length / 3; i++)
             {
                 int index1 = indices[i * 3];
                 int index2 = indices[i * 3 + 1];
                 int index3 = indices[i * 3 + 2];

                 Vector3 side1 = vertices[index1].Position - vertices[index3].Position;
                 Vector3 side2 = vertices[index1].Position - vertices[index2].Position;
                 Vector3 normal = Vector3.Cross(side1, side2);

                 vertices[index1].Normal += normal;
                 vertices[index2].Normal += normal;
                 vertices[index3].Normal += normal;
             }

             for (int i = 0; i < vertices.Length; i++)
                 vertices[i].Normal.Normalize();

             return vertices;
         }

         private void CopyToTerrainBuffers(VertexMultitextured[] vertices, int[] indices)
         {
             terrainVertexBuffer = new VertexBuffer(device, vertices.Length * VertexMultitextured.SizeInBytes, BufferUsage.WriteOnly);
             terrainVertexBuffer.SetData(vertices);

             terrainIndexBuffer = new IndexBuffer(device, typeof(int), indices.Length, BufferUsage.WriteOnly);
             terrainIndexBuffer.SetData(indices);
         }

         private void SetUpWaterVertices()
         {
             VertexPositionTexture[] waterVertices = new VertexPositionTexture[6];

             waterVertices[0] = new VertexPositionTexture(new Vector3(0, waterHeight, 0), new Vector2(0, 1));
             waterVertices[2] = new VertexPositionTexture(new Vector3(terrainWidth, waterHeight, -terrainLength), new Vector2(1, 0));
             waterVertices[1] = new VertexPositionTexture(new Vector3(0, waterHeight, -terrainLength), new Vector2(0, 0));

             waterVertices[3] = new VertexPositionTexture(new Vector3(0, waterHeight, 0), new Vector2(0, 1));
             waterVertices[5] = new VertexPositionTexture(new Vector3(terrainWidth, waterHeight, 0), new Vector2(1, 1));
             waterVertices[4] = new VertexPositionTexture(new Vector3(terrainWidth, waterHeight, -terrainLength), new Vector2(1, 0));

             waterVertexBuffer = new VertexBuffer(device, waterVertices.Length * VertexPositionTexture.SizeInBytes, BufferUsage.WriteOnly);
             waterVertexBuffer.SetData(waterVertices);
         }


        private void CreateBillboardVerticesFromList(List<Vector3> treeList)        {
            VertexPositionTexture[] billboardVertices = new VertexPositionTexture[treeList.Count * 6];
            int i = 0;
            foreach (Vector3 currentV3 in treeList)
            {
                billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(0, 0));
                billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(1, 0));
                billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(1, 1));

                billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(0, 0));
                billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(1, 1));
                billboardVertices[i++] = new VertexPositionTexture(currentV3, new Vector2(0, 1));
            }

            treeVertexBuffer = new VertexBuffer(device, billboardVertices.Length * VertexPositionTexture.SizeInBytes, BufferUsage.WriteOnly);
            treeVertexBuffer.SetData(billboardVertices);
            treeVertexDeclaration = new VertexDeclaration(device, VertexPositionTexture.VertexElements);
        }


        private List<Vector3> GenerateTreePositions(VertexMultitextured[] terrainVertices)        {

            List<Vector3> treeList = new List<Vector3> ();
            treeList.Add(terrainVertices[3310].Position);
            treeList.Add(terrainVertices[3315].Position);
            treeList.Add(terrainVertices[3320].Position);
            treeList.Add(terrainVertices[3325].Position);

            return treeList;
        }


         protected override void UnloadContent()
         {
         }

         protected override void Update(GameTime gameTime)
         {
             if (GamePad.GetState(PlayerIndex.One).Buttons.Back == ButtonState.Pressed)
                 this.Exit();

             float timeDifference = (float)gameTime.ElapsedGameTime.TotalMilliseconds / 1000.0f;
             ProcessInput(timeDifference);

             base.Update(gameTime);
         }

         private void ProcessInput(float amount)
         {
             MouseState currentMouseState = Mouse.GetState();
             if (currentMouseState != originalMouseState)
             {
                 float xDifference = currentMouseState.X - originalMouseState.X;
                 float yDifference = currentMouseState.Y - originalMouseState.Y;
                 leftrightRot -= rotationSpeed * xDifference * amount;
                 updownRot -= rotationSpeed * yDifference * amount;
                 Mouse.SetPosition(device.Viewport.Width / 2, device.Viewport.Height / 2);
                 UpdateViewMatrix();
             }

             Vector3 moveVector = new Vector3(0, 0, 0);
             KeyboardState keyState = Keyboard.GetState();
             if (keyState.IsKeyDown(Keys.Up) || keyState.IsKeyDown(Keys.W))
                 moveVector += new Vector3(0, 0, -1);
             if (keyState.IsKeyDown(Keys.Down) || keyState.IsKeyDown(Keys.S))
                 moveVector += new Vector3(0, 0, 1);
             if (keyState.IsKeyDown(Keys.Right) || keyState.IsKeyDown(Keys.D))
                 moveVector += new Vector3(1, 0, 0);
             if (keyState.IsKeyDown(Keys.Left) || keyState.IsKeyDown(Keys.A))
                 moveVector += new Vector3(-1, 0, 0);
             if (keyState.IsKeyDown(Keys.Q))
                 moveVector += new Vector3(0, 1, 0);
             if (keyState.IsKeyDown(Keys.Z))
                 moveVector += new Vector3(0, -1, 0);
             AddToCameraPosition(moveVector * amount);
         }

         private void AddToCameraPosition(Vector3 vectorToAdd)
         {
             Matrix cameraRotation = Matrix.CreateRotationX(updownRot) * Matrix.CreateRotationY(leftrightRot);
             Vector3 rotatedVector = Vector3.Transform(vectorToAdd, cameraRotation);
             cameraPosition += moveSpeed * rotatedVector;
             UpdateViewMatrix();
         }

         private void UpdateViewMatrix()
         {
             Matrix cameraRotation = Matrix.CreateRotationX(updownRot) * Matrix.CreateRotationY(leftrightRot);

             Vector3 cameraOriginalTarget = new Vector3(0, 0, -1);
             Vector3 cameraOriginalUpVector = new Vector3(0, 1, 0);
             Vector3 cameraRotatedTarget = Vector3.Transform(cameraOriginalTarget, cameraRotation);
             Vector3 cameraFinalTarget = cameraPosition + cameraRotatedTarget;
             Vector3 cameraRotatedUpVector = Vector3.Transform(cameraOriginalUpVector, cameraRotation);

             viewMatrix = Matrix.CreateLookAt(cameraPosition, cameraFinalTarget, cameraRotatedUpVector);

             Vector3 reflCameraPosition = cameraPosition;
             reflCameraPosition.Y = -cameraPosition.Y + waterHeight * 2;
             Vector3 reflTargetPos = cameraFinalTarget;
             reflTargetPos.Y = -cameraFinalTarget.Y + waterHeight * 2;

             Vector3 cameraRight = Vector3.Transform(new Vector3(1, 0, 0), cameraRotation);
             Vector3 invUpVector = Vector3.Cross(cameraRight, reflTargetPos - reflCameraPosition);

             reflectionViewMatrix = Matrix.CreateLookAt(reflCameraPosition, reflTargetPos, invUpVector);
         }

         protected override void Draw(GameTime gameTime)
         {
             float time = (float)gameTime.TotalGameTime.TotalMilliseconds / 100.0f;

             DrawRefractionMap();
             DrawReflectionMap();

             device.Clear(ClearOptions.Target | ClearOptions.DepthBuffer, Color.White, 1.0f, 0);
             DrawSkyDome(viewMatrix);
             DrawTerrain(viewMatrix);
             DrawWater(time);
             DrawBillboards(viewMatrix);

             base.Draw(gameTime);
         }

         private void DrawTerrain(Matrix currentViewMatrix)
         {
             effect.CurrentTechnique = effect.Techniques["MultiTextured"];
             effect.Parameters["xTexture0"].SetValue(sandTexture);
             effect.Parameters["xTexture1"].SetValue(grassTexture);
             effect.Parameters["xTexture2"].SetValue(rockTexture);
             effect.Parameters["xTexture3"].SetValue(snowTexture);

             Matrix worldMatrix = Matrix.Identity;
             effect.Parameters["xWorld"].SetValue(worldMatrix);
             effect.Parameters["xView"].SetValue(currentViewMatrix);
             effect.Parameters["xProjection"].SetValue(projectionMatrix);

             effect.Parameters["xEnableLighting"].SetValue(true);
             effect.Parameters["xAmbient"].SetValue(0.4f);
             effect.Parameters["xLightDirection"].SetValue(new Vector3(-0.5f, -1, -0.5f));

             effect.Begin();
             foreach (EffectPass pass in effect.CurrentTechnique.Passes)
             {
                 pass.Begin();

                 device.Vertices[0].SetSource(terrainVertexBuffer, 0, VertexMultitextured.SizeInBytes);
                 device.Indices = terrainIndexBuffer;
                 device.VertexDeclaration = terrainVertexDeclaration;

                 int noVertices = terrainVertexBuffer.SizeInBytes / VertexMultitextured.SizeInBytes;
                 int noTriangles = terrainIndexBuffer.SizeInBytes / sizeof(int) / 3;
                 device.DrawIndexedPrimitives(PrimitiveType.TriangleList, 0, 0, noVertices, 0, noTriangles);

                 pass.End();
             }
             effect.End();
         }

         private void DrawSkyDome(Matrix currentViewMatrix)
         {
             device.RenderState.DepthBufferWriteEnable = false;

             Matrix[] modelTransforms = new Matrix[skyDome.Bones.Count];
             skyDome.CopyAbsoluteBoneTransformsTo(modelTransforms);

             Matrix wMatrix = Matrix.CreateTranslation(0, -0.3f, 0) * Matrix.CreateScale(100) * Matrix.CreateTranslation(cameraPosition);
             foreach (ModelMesh mesh in skyDome.Meshes)
             {
                 foreach (Effect currentEffect in mesh.Effects)
                 {
                     Matrix worldMatrix = modelTransforms[mesh.ParentBone.Index] * wMatrix;
                     currentEffect.CurrentTechnique = currentEffect.Techniques["Textured"];
                     currentEffect.Parameters["xWorld"].SetValue(worldMatrix);
                     currentEffect.Parameters["xView"].SetValue(currentViewMatrix);
                     currentEffect.Parameters["xProjection"].SetValue(projectionMatrix);
                     currentEffect.Parameters["xTexture"].SetValue(cloudMap);
                     currentEffect.Parameters["xEnableLighting"].SetValue(false);
                 }
                 mesh.Draw();
             }
             device.RenderState.DepthBufferWriteEnable = true;
         }

         private Plane CreatePlane(float height, Vector3 planeNormalDirection, Matrix currentViewMatrix, bool clipSide)
         {
             planeNormalDirection.Normalize();
             Vector4 planeCoeffs = new Vector4(planeNormalDirection, height);
             if (clipSide)
                 planeCoeffs *= -1;

             Matrix worldViewProjection = currentViewMatrix * projectionMatrix;
             Matrix inverseWorldViewProjection = Matrix.Invert(worldViewProjection);
             inverseWorldViewProjection = Matrix.Transpose(inverseWorldViewProjection);

             planeCoeffs = Vector4.Transform(planeCoeffs, inverseWorldViewProjection);
             Plane finalPlane = new Plane(planeCoeffs);

             return finalPlane;
         }

         private void DrawRefractionMap()
         {
             Plane refractionPlane = CreatePlane(waterHeight + 1.5f, new Vector3(0, -1, 0), viewMatrix, false);
             device.ClipPlanes[0].Plane = refractionPlane;
             device.ClipPlanes[0].IsEnabled = true;
             device.SetRenderTarget(0, refractionRenderTarget);
             device.Clear(ClearOptions.Target | ClearOptions.DepthBuffer, Color.Black, 1.0f, 0);
             DrawTerrain(viewMatrix);
             device.ClipPlanes[0].IsEnabled = false;

             device.SetRenderTarget(0, null);
             refractionMap = refractionRenderTarget.GetTexture();
         }

         private void DrawReflectionMap()
         {
             Plane reflectionPlane = CreatePlane(waterHeight - 0.5f, new Vector3(0, -1, 0), reflectionViewMatrix, true);
             device.ClipPlanes[0].Plane = reflectionPlane;
             device.ClipPlanes[0].IsEnabled = true;
             device.SetRenderTarget(0, reflectionRenderTarget);
             device.Clear(ClearOptions.Target | ClearOptions.DepthBuffer, Color.Black, 1.0f, 0);
             DrawTerrain(reflectionViewMatrix);
             DrawSkyDome(reflectionViewMatrix);
             device.ClipPlanes[0].IsEnabled = false;

             device.SetRenderTarget(0, null);
             reflectionMap = reflectionRenderTarget.GetTexture();
         }

         private void DrawWater(float time)
         {
             effect.CurrentTechnique = effect.Techniques["Water"];
             Matrix worldMatrix = Matrix.Identity;
             effect.Parameters["xWorld"].SetValue(worldMatrix);
             effect.Parameters["xView"].SetValue(viewMatrix);
             effect.Parameters["xReflectionView"].SetValue(reflectionViewMatrix);
             effect.Parameters["xProjection"].SetValue(projectionMatrix);
             effect.Parameters["xReflectionMap"].SetValue(reflectionMap);
             effect.Parameters["xRefractionMap"].SetValue(refractionMap);
             effect.Parameters["xWaterBumpMap"].SetValue(waterBumpMap);
             effect.Parameters["xWaveLength"].SetValue(0.1f);
             effect.Parameters["xWaveHeight"].SetValue(0.3f);
             effect.Parameters["xCamPos"].SetValue(cameraPosition);
             effect.Parameters["xTime"].SetValue(time);
             effect.Parameters["xWindForce"].SetValue(0.002f);
             effect.Parameters["xWindDirection"].SetValue(windDirection);

             effect.Begin();
             foreach (EffectPass pass in effect.CurrentTechnique.Passes)
             {
                 pass.Begin();

                 device.Vertices[0].SetSource(waterVertexBuffer, 0, VertexPositionTexture.SizeInBytes);
                 device.VertexDeclaration = waterVertexDeclaration;
                 int noVertices = waterVertexBuffer.SizeInBytes / VertexPositionTexture.SizeInBytes;
                 device.DrawPrimitives(PrimitiveType.TriangleList, 0, noVertices / 3);

                 pass.End();
             }
             effect.End();
         }

         private void DrawBillboards(Matrix currentViewMatrix)
         {
             bbEffect.CurrentTechnique = bbEffect.Techniques["CylBillboard"];
             bbEffect.Parameters["xWorld"].SetValue(Matrix.Identity);
             bbEffect.Parameters["xView"].SetValue(currentViewMatrix);
             bbEffect.Parameters["xProjection"].SetValue(projectionMatrix);
             bbEffect.Parameters["xCamPos"].SetValue(cameraPosition);
             bbEffect.Parameters["xAllowedRotDir"].SetValue(new Vector3(0, 1, 0));
             bbEffect.Parameters["xBillboardTexture"].SetValue(treeTexture);

             device.RenderState.AlphaBlendEnable = true;
             device.RenderState.SourceBlend = Blend.SourceAlpha;
             device.RenderState.DestinationBlend = Blend.InverseSourceAlpha;

             bbEffect.Begin();
             foreach (EffectPass pass in bbEffect.CurrentTechnique.Passes)
             {
                 pass.Begin();
                 device.Vertices[0].SetSource(treeVertexBuffer, 0, VertexPositionTexture.SizeInBytes);
                 device.VertexDeclaration = treeVertexDeclaration;
                 int noVertices = treeVertexBuffer.SizeInBytes / VertexPositionTexture.SizeInBytes;
                 int noTriangles = noVertices / 3;
                 device.DrawPrimitives(PrimitiveType.TriangleList, 0, noTriangles);
                 pass.End();
             }
             bbEffect.End();

             device.RenderState.AlphaBlendEnable = false;
         }
     }
 }

bbEffect.fx文件的代码如下:

//------- XNA interface --------
float4x4 xView;
float4x4 xProjection;
float4x4 xWorld;
float3 xCamPos;
float3 xAllowedRotDir;

//------- Texture Samplers --------
Texture xBillboardTexture;

sampler textureSampler = sampler_state { texture = <xBillboardTexture> ; magfilter = LINEAR; minfilter = LINEAR; mipfilter=LINEAR; AddressU = CLAMP; AddressV = CLAMP;};
struct BBVertexToPixel
{
    float4 Position : POSITION;
    float2 TexCoord    : TEXCOORD0;
};
struct BBPixelToFrame
{
    float4 Color     : COLOR0;
};

//------- Technique: CylBillboard --------
BBVertexToPixel CylBillboardVS(float3 inPos: POSITION0, float2 inTexCoord: TEXCOORD0)
{
    BBVertexToPixel Output = (BBVertexToPixel)0;

    float3 center = mul(inPos, xWorld);
    float3 eyeVector = center - xCamPos;

    float3 upVector = xAllowedRotDir;
    upVector = normalize(upVector);
    float3 sideVector = cross(eyeVector,upVector);
    sideVector = normalize(sideVector);

    float3 finalPosition = center;
    finalPosition += (inTexCoord.x-0.5f)*sideVector;
    finalPosition += (1.5f-inTexCoord.y*1.5f)*upVector;

    float4 finalPosition4 = float4(finalPosition, 1);

    float4x4 preViewProjection = mul (xView, xProjection);
    Output.Position = mul(finalPosition4, preViewProjection);

    Output.TexCoord = inTexCoord;

    return Output;
}

BBPixelToFrame BillboardPS(BBVertexToPixel PSIn) : COLOR0
{
    BBPixelToFrame Output = (BBPixelToFrame)0;
    Output.Color = tex2D(textureSampler, PSIn.TexCoord);

    return Output;
}

technique CylBillboard
{
    pass Pass0
    {
        VertexShader = compile vs_1_1 CylBillboardVS();
        PixelShader = compile ps_1_1 BillboardPS();
    }
}

发布时间:2009/12/29 9:15:11  阅读次数:10479

2006 - 2024,推荐分辨率1024*768以上,推荐浏览器Chrome、Edge等现代浏览器,截止2021年12月5日的访问次数:1872万9823 站长邮箱

沪ICP备18037240号-1

沪公网安备 31011002002865号
