3D系列4.11 波浪 初级凹凸映射

现在我们的水面看起来象镜子,我们需要添加一些波浪让它更真实。那应该如何做?我们使用一个非常简单的技巧而无需进行正弦和余弦的计算(波浪的数学算式)。对水面的每个像素,我们将稍微改变一些每个像素的采样位置,而不是从反射贴图的正确位置进行采样,我把这叫做纹理坐标扰动(texture coordinate perturbation)。

一种方法是将水面分割成许多小三角形,在XNA程序中每帧更新它们的纹理坐标。这对CPU来说计算量很大,几乎不可能完成。正确的方法是仍使用两个三角形,但在像素着色器中进行纹理坐标的计算。

但仍有一个问题:我们需要调整每个像素的纹理坐标多大距离?要解决这个问题,试着想象一下自然中的现象:如果无风,水面是平静的,看起来像镜子。如果有风,,水面会产生波浪,但在波浪的顶部和底部,水面是平的,因此反射仍然很完美:在每个波浪的顶部和底部扰动最小。但是,波浪的侧面肯定不是水平的,因此需要最大的扰动!

我们需要的是每个像素的平整度,为此我们将使用一张真实水面的图像。但是,我们感兴趣的并不是要图像本身,而是每个像素的平整度。这就是高度图:如果你有一张256x256的水面图像A,它的高度图B也是一张256x256的图像,每个像素的颜色表示与图像A中对应像素的颜色区别。

高度贴图是一个数学术语;在游戏中通常叫做凹凸贴图,下图是水面的凹凸贴图:

凹凸贴图

这个图像的每个像素包含三个值,一个值对应一个颜色。这三个值对应法线向量的三个分量。例如,如果一个像素对应的面是平的,法线向量指向上方。它的X和Z分量为0,Y分量为1。在颜色中,红色和绿色为0,蓝色为1,所以,整个贴图会是蓝色的。

但是,因为水面不是平的,每个像素的法线并不相同,红色和绿色通道包含法线偏离X和Z轴的大小信息。因此红色和绿色分量越大,法线离开向上方向就越远,水面就越不平。

蓝色分量只用来创建法线向量,法线需要三个分量,但本例中我们只关心水面上像素的平整度,这是使用红色和绿色分量表示的。在XNA代码中,我们无需进行太多操作:只需将凹凸贴图传递到着色器中。所以声明以下变量: Texture2D waterBumpMap; 在LoadTextures方法中加载这个纹理:

waterBumpMap = Content.Load<Texture2D> ("waterbump");

在DrawWater 方法中将它传递到着色器:

effect.Parameters["xWaterBumpMap"].SetValue(waterBumpMap);

这就是XNA代码。让我们进入HLSL部分。首先声明凹凸贴图:

Texture xWaterBumpMap;
sampler WaterBumpMapSampler = sampler_state
{
    texture = <xWaterBumpMap>;
    magfilter = LINEAR;
    minfilter = LINEAR;
    mipfilter=LINEAR;
    AddressU = mirror;
    AddressV = mirror;
};

声明两个变量:

float xWaveLength;
float xWaveHeight;

我认为它们的名称不需要进一步解释。现在开始更新着色器代码。截止上一章,我们已经定义了6个顶点的纹理坐标构成水面,现在需要这些坐标采样凹凸贴图,所以需要调整顶点输出结构和着色器让它可以传递到像素着色器:

struct WVertexToPixel
{
    float4 Position : POSITION;
    float4 ReflectionMapSamplingPos : TEXCOORD1;
    float2 BumpMapSamplingPos : TEXCOORD2;
};
...
Output.BumpMapSamplingPos = inTex/xWaveLength;

最后一行代码除以xWaveLength:这个值大会使纹理坐标小,这样凹凸贴图会扩展到一个很大的区域内。

现在看一下像素着色器。首先采样凹凸贴图:

float4 bumpColor = tex2D(WaterBumpMapSampler, PSIn.BumpMapSamplingPos);

这次,bumpColor的红色和绿色值表示采样反射贴图的坐标需要被扰动多少。所以你想让它包含范围为-1到+1之间的值。但是,颜色值范围在0和1之间!所以,在保存颜色前需要通过将值从[-1,1]区间映射到[0,1]才能创建高度图。这可以通过除2加0.5实现。例如,如果法线没有调整,X和Z分量为0,Y分量为1,当转换为颜色是为(0.5, 0.5, 1),这就是从凹凸贴图中获取的颜色。当然,我们需要将凹凸贴图中的值从[0,1]范围重新映射到[-1,1]范围:

float2 perturbation = xWaveHeight*(bumpColor.rg - 0.5f)*2.0f;

最终获取了扰动过的纹理坐标:

float2 perturbatedTexCoords = ProjectedTexCoords + perturbation;

使用这个最终的纹理坐标采样反射贴图:

Output.Color = tex2D(ReflectionSampler, perturbatedTexCoords);

这就是HLSL代码,我们要做的就是在DrawWater方法中设置2个变量:

effect.Parameters["xWaveLength"].SetValue(0.1f);
effect.Parameters["xWaveHeight"].SetValue(0.3f);

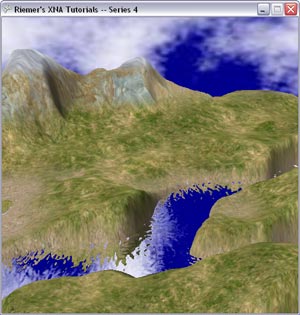

运行代码后截图如下: 现在看起来像水面了。

程序截图

下面是目前为止的XNA代码,红色部分为相对上一章改变的代码:

using System;
 using System.Collections.Generic;
 using Microsoft.Xna.Framework;
 using Microsoft.Xna.Framework.Audio;
 using Microsoft.Xna.Framework.Content;
 using Microsoft.Xna.Framework.GamerServices;
 using Microsoft.Xna.Framework.Graphics;
 using Microsoft.Xna.Framework.Input;
 using Microsoft.Xna.Framework.Net;
 using Microsoft.Xna.Framework.Storage;

 namespace XNAseries4
 {
     public struct VertexMultitextured
     {
         public Vector3 Position;
         public Vector3 Normal;
         public Vector4 TextureCoordinate;
         public Vector4 TexWeights;

         public static int SizeInBytes = (3 + 3 + 4 + 4) * sizeof(float);
         public static VertexElement[] VertexElements = new VertexElement[]
         {
             new VertexElement( 0, 0, VertexElementFormat.Vector3, VertexElementMethod.Default, VertexElementUsage.Position, 0 ),
             new VertexElement( 0, sizeof(float) * 3, VertexElementFormat.Vector3, VertexElementMethod.Default, VertexElementUsage.Normal, 0 ),
             new VertexElement( 0, sizeof(float) * 6, VertexElementFormat.Vector4, VertexElementMethod.Default, VertexElementUsage.TextureCoordinate, 0 ),
             new VertexElement( 0, sizeof(float) * 10, VertexElementFormat.Vector4, VertexElementMethod.Default, VertexElementUsage.TextureCoordinate, 1 ),
         };
     }

     public class Game1 : Microsoft.Xna.Framework.Game
     {
         GraphicsDeviceManager graphics;
         GraphicsDevice device;

         int terrainWidth;
         int terrainLength;
         float[,] heightData;

         VertexBuffer terrainVertexBuffer;
         IndexBuffer terrainIndexBuffer;
         VertexDeclaration terrainVertexDeclaration;

         VertexBuffer waterVertexBuffer;
         VertexDeclaration waterVertexDeclaration;

         Effect effect;
         Matrix viewMatrix;
         Matrix projectionMatrix;
         Matrix reflectionViewMatrix;

         Vector3 cameraPosition = new Vector3(130, 30, -50);
         float leftrightRot = MathHelper.PiOver2;
         float updownRot = -MathHelper.Pi / 10.0f;
         const float rotationSpeed = 0.3f;
         const float moveSpeed = 30.0f;
         MouseState originalMouseState;

         Texture2D grassTexture;
         Texture2D sandTexture;
         Texture2D rockTexture;
         Texture2D snowTexture;
         Texture2D cloudMap;
         Texture2D waterBumpMap;

         Model skyDome;

         const float waterHeight = 5.0f;
         RenderTarget2D refractionRenderTarget;
         Texture2D refractionMap;
         RenderTarget2D reflectionRenderTarget;
         Texture2D reflectionMap;

         public Game1()
         {
             graphics = new GraphicsDeviceManager(this);
             Content.RootDirectory = "Content";
         }

         protected override void Initialize()
         {
             graphics.PreferredBackBufferWidth = 500;
             graphics.PreferredBackBufferHeight = 500;

             graphics.ApplyChanges();
             Window.Title = "Riemer's XNA Tutorials -- Series 4";

             base.Initialize();
         }

         protected override void LoadContent()
         {
             device = GraphicsDevice;

            effect = Content.Load<Effect> ("Series4Effects");
            UpdateViewMatrix();
            projectionMatrix = Matrix.CreatePerspectiveFieldOfView(MathHelper.PiOver4, device.Viewport.AspectRatio, 0.3f, 1000.0f);

            Mouse.SetPosition(device.Viewport.Width / 2, device.Viewport.Height / 2);
            originalMouseState = Mouse.GetState();


            skyDome = Content.Load<Model> ("dome");            skyDome.Meshes[0].MeshParts[0].Effect = effect.Clone(device);

            PresentationParameters pp = device.PresentationParameters;
            refractionRenderTarget = new RenderTarget2D(device, pp.BackBufferWidth, pp.BackBufferHeight, 1, device.DisplayMode.Format);
            reflectionRenderTarget = new RenderTarget2D(device, pp.BackBufferWidth, pp.BackBufferHeight, 1, device.DisplayMode.Format);

            LoadVertices();
            LoadTextures();
        }

        private void LoadVertices()
        {

            Texture2D heightMap = Content.Load<Texture2D> ("heightmap");            LoadHeightData(heightMap);

            VertexMultitextured[] terrainVertices = SetUpTerrainVertices();
            int[] terrainIndices = SetUpTerrainIndices();
            terrainVertices = CalculateNormals(terrainVertices, terrainIndices);
            CopyToTerrainBuffers(terrainVertices, terrainIndices);
            terrainVertexDeclaration = new VertexDeclaration(device, VertexMultitextured.VertexElements);

            SetUpWaterVertices();
            waterVertexDeclaration = new VertexDeclaration(device, VertexPositionTexture.VertexElements);
        }

        private void LoadTextures()
        {

            grassTexture = Content.Load<Texture2D> ("grass");
            sandTexture = Content.Load<Texture2D> ("sand");
            rockTexture = Content.Load<Texture2D> ("rock");
            snowTexture = Content.Load<Texture2D> ("snow");
            cloudMap = Content.Load<Texture2D> ("cloudMap");

            waterBumpMap = Content.Load<Texture2D> ("waterbump");
         }

         private void LoadHeightData(Texture2D heightMap)
         {
             float minimumHeight = float.MaxValue;
             float maximumHeight = float.MinValue;

             terrainWidth = heightMap.Width;
             terrainLength = heightMap.Height;

             Color[] heightMapColors = new Color[terrainWidth * terrainLength];
             heightMap.GetData(heightMapColors);

             heightData = new float[terrainWidth, terrainLength];
             for (int x = 0; x < terrainWidth; x++)
                 for (int y = 0; y < terrainLength; y++)
                 {
                     heightData[x, y] = heightMapColors[x + y * terrainWidth].R;
                     if (heightData[x, y] < minimumHeight) minimumHeight = heightData[x, y];
                     if (heightData[x, y] > maximumHeight) maximumHeight = heightData[x, y];
                 }

             for (int x = 0; x < terrainWidth; x++)
                 for (int y = 0; y < terrainLength; y++)
                     heightData[x, y] = (heightData[x, y] - minimumHeight) / (maximumHeight - minimumHeight) * 30.0f;
         }

         private VertexMultitextured[] SetUpTerrainVertices()
         {
             VertexMultitextured[] terrainVertices = new VertexMultitextured[terrainWidth * terrainLength];

             for (int x = 0; x < terrainWidth; x++)
             {
                 for (int y = 0; y < terrainLength; y++)
                 {
                     terrainVertices[x + y * terrainWidth].Position = new Vector3(x, heightData[x, y], -y);
                     terrainVertices[x + y * terrainWidth].TextureCoordinate.X = (float)x / 30.0f;
                     terrainVertices[x + y * terrainWidth].TextureCoordinate.Y = (float)y / 30.0f;

                     terrainVertices[x + y * terrainWidth].TexWeights.X = MathHelper.Clamp(1.0f - Math.Abs(heightData[x, y] - 0) / 8.0f, 0, 1);
                     terrainVertices[x + y * terrainWidth].TexWeights.Y = MathHelper.Clamp(1.0f - Math.Abs(heightData[x, y] - 12) / 6.0f, 0, 1);
                     terrainVertices[x + y * terrainWidth].TexWeights.Z = MathHelper.Clamp(1.0f - Math.Abs(heightData[x, y] - 20) / 6.0f, 0, 1);
                     terrainVertices[x + y * terrainWidth].TexWeights.W = MathHelper.Clamp(1.0f - Math.Abs(heightData[x, y] - 30) / 6.0f, 0, 1);

                     float total = terrainVertices[x + y * terrainWidth].TexWeights.X;
                     total += terrainVertices[x + y * terrainWidth].TexWeights.Y;
                     total += terrainVertices[x + y * terrainWidth].TexWeights.Z;
                     total += terrainVertices[x + y * terrainWidth].TexWeights.W;

                     terrainVertices[x + y * terrainWidth].TexWeights.X /= total;
                     terrainVertices[x + y * terrainWidth].TexWeights.Y /= total;
                     terrainVertices[x + y * terrainWidth].TexWeights.Z /= total;
                     terrainVertices[x + y * terrainWidth].TexWeights.W /= total;
                 }
             }

             return terrainVertices;
         }

         private int[] SetUpTerrainIndices()
         {
             int[] indices = new int[(terrainWidth - 1) * (terrainLength - 1) * 6];
             int counter = 0;
             for (int y = 0; y < terrainLength - 1; y++)
             {
                 for (int x = 0; x < terrainWidth - 1; x++)
                 {
                     int lowerLeft = x + y * terrainWidth;
                     int lowerRight = (x + 1) + y * terrainWidth;
                     int topLeft = x + (y + 1) * terrainWidth;
                     int topRight = (x + 1) + (y + 1) * terrainWidth;

                     indices[counter++] = topLeft;
                     indices[counter++] = lowerRight;
                     indices[counter++] = lowerLeft;

                     indices[counter++] = topLeft;
                     indices[counter++] = topRight;
                     indices[counter++] = lowerRight;
                 }
             }

             return indices;
         }

         private VertexMultitextured[] CalculateNormals(VertexMultitextured[] vertices, int[] indices)
         {
             for (int i = 0; i < vertices.Length; i++)
                 vertices[i].Normal = new Vector3(0, 0, 0);

             for (int i = 0; i < indices.Length / 3; i++)
             {
                 int index1 = indices[i * 3];
                 int index2 = indices[i * 3 + 1];
                 int index3 = indices[i * 3 + 2];

                 Vector3 side1 = vertices[index1].Position - vertices[index3].Position;
                 Vector3 side2 = vertices[index1].Position - vertices[index2].Position;
                 Vector3 normal = Vector3.Cross(side1, side2);

                 vertices[index1].Normal += normal;
                 vertices[index2].Normal += normal;
                 vertices[index3].Normal += normal;
             }

             for (int i = 0; i < vertices.Length; i++)
                 vertices[i].Normal.Normalize();

             return vertices;
         }

         private void CopyToTerrainBuffers(VertexMultitextured[] vertices, int[] indices)
         {
             terrainVertexBuffer = new VertexBuffer(device, vertices.Length * VertexMultitextured.SizeInBytes, BufferUsage.WriteOnly);
             terrainVertexBuffer.SetData(vertices);

             terrainIndexBuffer = new IndexBuffer(device, typeof(int), indices.Length, BufferUsage.WriteOnly);
             terrainIndexBuffer.SetData(indices);
         }

         private void SetUpWaterVertices()
         {
             VertexPositionTexture[] waterVertices = new VertexPositionTexture[6];

             waterVertices[0] = new VertexPositionTexture(new Vector3(0, waterHeight, 0), new Vector2(0, 1));
             waterVertices[2] = new VertexPositionTexture(new Vector3(terrainWidth, waterHeight, -terrainLength), new Vector2(1, 0));
             waterVertices[1] = new VertexPositionTexture(new Vector3(0, waterHeight, -terrainLength), new Vector2(0, 0));

             waterVertices[3] = new VertexPositionTexture(new Vector3(0, waterHeight, 0), new Vector2(0, 1));
             waterVertices[5] = new VertexPositionTexture(new Vector3(terrainWidth, waterHeight, 0), new Vector2(1, 1));
             waterVertices[4] = new VertexPositionTexture(new Vector3(terrainWidth, waterHeight, -terrainLength), new Vector2(1, 0));

             waterVertexBuffer = new VertexBuffer(device, waterVertices.Length * VertexPositionTexture.SizeInBytes, BufferUsage.WriteOnly);
             waterVertexBuffer.SetData(waterVertices);
         }

         protected override void UnloadContent()
         {
         }

         protected override void Update(GameTime gameTime)
         {
             if (GamePad.GetState(PlayerIndex.One).Buttons.Back == ButtonState.Pressed)
                 this.Exit();

             float timeDifference = (float)gameTime.ElapsedGameTime.TotalMilliseconds / 1000.0f;
             ProcessInput(timeDifference);

             base.Update(gameTime);
         }

         private void ProcessInput(float amount)
         {
             MouseState currentMouseState = Mouse.GetState();
             if (currentMouseState != originalMouseState)
             {
                 float xDifference = currentMouseState.X - originalMouseState.X;
                 float yDifference = currentMouseState.Y - originalMouseState.Y;
                 leftrightRot -= rotationSpeed * xDifference * amount;
                 updownRot -= rotationSpeed * yDifference * amount;
                 Mouse.SetPosition(device.Viewport.Width / 2, device.Viewport.Height / 2);
                 UpdateViewMatrix();
             }

             Vector3 moveVector = new Vector3(0, 0, 0);
             KeyboardState keyState = Keyboard.GetState();
             if (keyState.IsKeyDown(Keys.Up) || keyState.IsKeyDown(Keys.W))
                 moveVector += new Vector3(0, 0, -1);
             if (keyState.IsKeyDown(Keys.Down) || keyState.IsKeyDown(Keys.S))
                 moveVector += new Vector3(0, 0, 1);
             if (keyState.IsKeyDown(Keys.Right) || keyState.IsKeyDown(Keys.D))
                 moveVector += new Vector3(1, 0, 0);
             if (keyState.IsKeyDown(Keys.Left) || keyState.IsKeyDown(Keys.A))
                 moveVector += new Vector3(-1, 0, 0);
             if (keyState.IsKeyDown(Keys.Q))
                 moveVector += new Vector3(0, 1, 0);
             if (keyState.IsKeyDown(Keys.Z))
                 moveVector += new Vector3(0, -1, 0);
             AddToCameraPosition(moveVector * amount);
         }

         private void AddToCameraPosition(Vector3 vectorToAdd)
         {
             Matrix cameraRotation = Matrix.CreateRotationX(updownRot) * Matrix.CreateRotationY(leftrightRot);
             Vector3 rotatedVector = Vector3.Transform(vectorToAdd, cameraRotation);
             cameraPosition += moveSpeed * rotatedVector;
             UpdateViewMatrix();
         }

         private void UpdateViewMatrix()
         {
             Matrix cameraRotation = Matrix.CreateRotationX(updownRot) * Matrix.CreateRotationY(leftrightRot);

             Vector3 cameraOriginalTarget = new Vector3(0, 0, -1);
             Vector3 cameraOriginalUpVector = new Vector3(0, 1, 0);
             Vector3 cameraRotatedTarget = Vector3.Transform(cameraOriginalTarget, cameraRotation);
             Vector3 cameraFinalTarget = cameraPosition + cameraRotatedTarget;
             Vector3 cameraRotatedUpVector = Vector3.Transform(cameraOriginalUpVector, cameraRotation);

             viewMatrix = Matrix.CreateLookAt(cameraPosition, cameraFinalTarget, cameraRotatedUpVector);

             Vector3 reflCameraPosition = cameraPosition;
             reflCameraPosition.Y = -cameraPosition.Y + waterHeight * 2;
             Vector3 reflTargetPos = cameraFinalTarget;
             reflTargetPos.Y = -cameraFinalTarget.Y + waterHeight * 2;

             Vector3 cameraRight = Vector3.Transform(new Vector3(1, 0, 0), cameraRotation);
             Vector3 invUpVector = Vector3.Cross(cameraRight, reflTargetPos - reflCameraPosition);

             reflectionViewMatrix = Matrix.CreateLookAt(reflCameraPosition, reflTargetPos, invUpVector);
         }

         protected override void Draw(GameTime gameTime)
         {
             float time = (float)gameTime.TotalGameTime.TotalMilliseconds / 100.0f;

             DrawRefractionMap();
             DrawReflectionMap();

             device.Clear(ClearOptions.Target | ClearOptions.DepthBuffer, Color.Black, 1.0f, 0);
             DrawSkyDome(viewMatrix);
             DrawTerrain(viewMatrix);
             DrawWater(time);

             base.Draw(gameTime);
         }

         private void DrawTerrain(Matrix currentViewMatrix)
         {
             effect.CurrentTechnique = effect.Techniques["MultiTextured"];
             effect.Parameters["xTexture0"].SetValue(sandTexture);
             effect.Parameters["xTexture1"].SetValue(grassTexture);
             effect.Parameters["xTexture2"].SetValue(rockTexture);
             effect.Parameters["xTexture3"].SetValue(snowTexture);

             Matrix worldMatrix = Matrix.Identity;
             effect.Parameters["xWorld"].SetValue(worldMatrix);
             effect.Parameters["xView"].SetValue(currentViewMatrix);
             effect.Parameters["xProjection"].SetValue(projectionMatrix);

             effect.Parameters["xEnableLighting"].SetValue(true);
             effect.Parameters["xAmbient"].SetValue(0.4f);
             effect.Parameters["xLightDirection"].SetValue(new Vector3(-0.5f, -1, -0.5f));

             effect.Begin();
             foreach (EffectPass pass in effect.CurrentTechnique.Passes)
             {
                 pass.Begin();

                 device.Vertices[0].SetSource(terrainVertexBuffer, 0, VertexMultitextured.SizeInBytes);
                 device.Indices = terrainIndexBuffer;
                 device.VertexDeclaration = terrainVertexDeclaration;

                 int noVertices = terrainVertexBuffer.SizeInBytes / VertexMultitextured.SizeInBytes;
                 int noTriangles = terrainIndexBuffer.SizeInBytes / sizeof(int) / 3;
                 device.DrawIndexedPrimitives(PrimitiveType.TriangleList, 0, 0, noVertices, 0, noTriangles);

                 pass.End();
             }
             effect.End();
         }

         private void DrawSkyDome(Matrix currentViewMatrix)
         {
             device.RenderState.DepthBufferWriteEnable = false;

             Matrix[] modelTransforms = new Matrix[skyDome.Bones.Count];
             skyDome.CopyAbsoluteBoneTransformsTo(modelTransforms);

             Matrix wMatrix = Matrix.CreateTranslation(0, -0.3f, 0) * Matrix.CreateScale(100) * Matrix.CreateTranslation(cameraPosition);
             foreach (ModelMesh mesh in skyDome.Meshes)
             {
                 foreach (Effect currentEffect in mesh.Effects)
                 {
                     Matrix worldMatrix = modelTransforms[mesh.ParentBone.Index] * wMatrix;
                     currentEffect.CurrentTechnique = currentEffect.Techniques["Textured"];
                     currentEffect.Parameters["xWorld"].SetValue(worldMatrix);
                     currentEffect.Parameters["xView"].SetValue(currentViewMatrix);
                     currentEffect.Parameters["xProjection"].SetValue(projectionMatrix);
                     currentEffect.Parameters["xTexture"].SetValue(cloudMap);
                     currentEffect.Parameters["xEnableLighting"].SetValue(false);
                 }
                 mesh.Draw();
             }
             device.RenderState.DepthBufferWriteEnable = true;
         }

         private Plane CreatePlane(float height, Vector3 planeNormalDirection, Matrix currentViewMatrix, bool clipSide)
         {
             planeNormalDirection.Normalize();
             Vector4 planeCoeffs = new Vector4(planeNormalDirection, height);
             if (clipSide)
                 planeCoeffs *= -1;

             Matrix worldViewProjection = currentViewMatrix * projectionMatrix;
             Matrix inverseWorldViewProjection = Matrix.Invert(worldViewProjection);
             inverseWorldViewProjection = Matrix.Transpose(inverseWorldViewProjection);

             planeCoeffs = Vector4.Transform(planeCoeffs, inverseWorldViewProjection);
             Plane finalPlane = new Plane(planeCoeffs);

             return finalPlane;
         }

         private void DrawRefractionMap()
         {
             Plane refractionPlane = CreatePlane(waterHeight + 1.5f, new Vector3(0,-1,0), viewMatrix, false);
             device.ClipPlanes[0].Plane = refractionPlane;
             device.ClipPlanes[0].IsEnabled = true;
             device.SetRenderTarget(0, refractionRenderTarget);
             device.Clear(ClearOptions.Target | ClearOptions.DepthBuffer, Color.Black, 1.0f, 0);
             DrawTerrain(viewMatrix);
             device.ClipPlanes[0].IsEnabled = false;

             device.SetRenderTarget(0, null);
             refractionMap = refractionRenderTarget.GetTexture();
         }

         private void DrawReflectionMap()
         {
             Plane reflectionPlane = CreatePlane(waterHeight - 0.5f, new Vector3(0,-1,0), reflectionViewMatrix, true);
             device.ClipPlanes[0].Plane = reflectionPlane;
             device.ClipPlanes[0].IsEnabled = true;
             device.SetRenderTarget(0, reflectionRenderTarget);
             device.Clear(ClearOptions.Target | ClearOptions.DepthBuffer, Color.Black, 1.0f, 0);
             DrawTerrain(reflectionViewMatrix);
             DrawSkyDome(reflectionViewMatrix);
             device.ClipPlanes[0].IsEnabled = false;

             device.SetRenderTarget(0, null);
             reflectionMap = reflectionRenderTarget.GetTexture();
         }

         private void DrawWater(float time)
         {
             effect.CurrentTechnique = effect.Techniques["Water"];
             Matrix worldMatrix = Matrix.Identity;
             effect.Parameters["xWorld"].SetValue(worldMatrix);
             effect.Parameters["xView"].SetValue(viewMatrix);
             effect.Parameters["xReflectionView"].SetValue(reflectionViewMatrix);
             effect.Parameters["xProjection"].SetValue(projectionMatrix);
             effect.Parameters["xReflectionMap"].SetValue(reflectionMap);
             effect.Parameters["xRefractionMap"].SetValue(refractionMap);
             effect.Parameters["xWaterBumpMap"].SetValue(waterBumpMap);
             effect.Parameters["xWaveLength"].SetValue(0.1f);
             effect.Parameters["xWaveHeight"].SetValue(0.3f);

             effect.Begin();
             foreach (EffectPass pass in effect.CurrentTechnique.Passes)
             {
                 pass.Begin();

                 device.Vertices[0].SetSource(waterVertexBuffer, 0, VertexPositionTexture.SizeInBytes);
                 device.VertexDeclaration = waterVertexDeclaration;
                 int noVertices = waterVertexBuffer.SizeInBytes / VertexPositionTexture.SizeInBytes;
                 device.DrawPrimitives(PrimitiveType.TriangleList, 0, noVertices / 3);

                 pass.End();
             }
             effect.End();
         }
     }
 }

HLSL文件,红色部分为相对上一章改变的代码:

//----------------------------------------------------
//--                                                --
//--             www.riemers.net                 --
//--         Series 4: Advanced terrain             --
//--                 Shader code                    --
//--                                                --
//----------------------------------------------------

//------- Constants --------
float4x4 xView;
float4x4 xReflectionView;
float4x4 xProjection;
float4x4 xWorld;
float3 xLightDirection;
float xAmbient;
bool xEnableLighting;

 float xWaveLength;
 float xWaveHeight;


//------- Texture Samplers --------
Texture xTexture;

sampler TextureSampler = sampler_state { texture = <xTexture> ; magfilter = LINEAR; minfilter = LINEAR; mipfilter=LINEAR; AddressU = mirror; AddressV = mirror;};Texture xTexture0;

sampler TextureSampler0 = sampler_state { texture = <xTexture0> ; magfilter = LINEAR; minfilter = LINEAR; mipfilter=LINEAR; AddressU = wrap; AddressV = wrap;};Texture xTexture1;

sampler TextureSampler1 = sampler_state { texture = <xTexture1> ; magfilter = LINEAR; minfilter = LINEAR; mipfilter=LINEAR; AddressU = wrap; AddressV = wrap;};Texture xTexture2;

sampler TextureSampler2 = sampler_state { texture = <xTexture2> ; magfilter = LINEAR; minfilter = LINEAR; mipfilter=LINEAR; AddressU = mirror; AddressV = mirror;};Texture xTexture3;

sampler TextureSampler3 = sampler_state { texture = <xTexture3> ; magfilter = LINEAR; minfilter = LINEAR; mipfilter=LINEAR; AddressU = mirror; AddressV = mirror;};Texture xReflectionMap;

sampler ReflectionSampler = sampler_state { texture = <xReflectionMap> ; magfilter = LINEAR; minfilter = LINEAR; mipfilter=LINEAR; AddressU = mirror; AddressV = mirror;};Texture xRefractionMap;

sampler RefractionSampler = sampler_state { texture = <xRefractionMap> ; magfilter = LINEAR; minfilter = LINEAR; mipfilter=LINEAR; AddressU = mirror; AddressV = mirror;};
 Texture xWaterBumpMap;

sampler WaterBumpMapSampler = sampler_state { texture = <xWaterBumpMap> ; magfilter = LINEAR; minfilter = LINEAR; mipfilter=LINEAR; AddressU = mirror; AddressV = mirror;};

//------- Technique: Textured --------
struct TVertexToPixel
{
    float4 Position     : POSITION;
    float4 Color        : COLOR0;
    float LightingFactor: TEXCOORD0;
    float2 TextureCoords: TEXCOORD1;
};

struct TPixelToFrame
{
    float4 Color : COLOR0;
};

TVertexToPixel TexturedVS( float4 inPos : POSITION, float3 inNormal: NORMAL, float2 inTexCoords: TEXCOORD0)
{
    TVertexToPixel Output = (TVertexToPixel)0;
    float4x4 preViewProjection = mul (xView, xProjection);
    float4x4 preWorldViewProjection = mul (xWorld, preViewProjection);

    Output.Position = mul(inPos, preWorldViewProjection);
    Output.TextureCoords = inTexCoords;

    float3 Normal = normalize(mul(normalize(inNormal), xWorld));
    Output.LightingFactor = 1;
    if (xEnableLighting)
        Output.LightingFactor = saturate(dot(Normal, -xLightDirection));

    return Output;
}

TPixelToFrame TexturedPS(TVertexToPixel PSIn)
{
    TPixelToFrame Output = (TPixelToFrame)0;

    Output.Color = tex2D(TextureSampler, PSIn.TextureCoords);
    Output.Color.rgb *= saturate(PSIn.LightingFactor + xAmbient);

    return Output;
}

technique Textured_2_0
{
    pass Pass0
    {
        VertexShader = compile vs_2_0 TexturedVS();
        PixelShader = compile ps_2_0 TexturedPS();
    }
}

technique Textured
{
    pass Pass0
    {
        VertexShader = compile vs_1_1 TexturedVS();
        PixelShader = compile ps_1_1 TexturedPS();
    }
}

//------- Technique: Multitextured --------
struct MTVertexToPixel
{
    float4 Position         : POSITION;
    float4 Color            : COLOR0;
    float3 Normal            : TEXCOORD0;
    float2 TextureCoords    : TEXCOORD1;
    float4 LightDirection    : TEXCOORD2;
    float4 TextureWeights    : TEXCOORD3;
    float Depth                : TEXCOORD4;
};

struct MTPixelToFrame
{
    float4 Color : COLOR0;
};

MTVertexToPixel MultiTexturedVS( float4 inPos : POSITION, float3 inNormal: NORMAL, float2 inTexCoords: TEXCOORD0, float4 inTexWeights: TEXCOORD1)
{
    MTVertexToPixel Output = (MTVertexToPixel)0;
    float4x4 preViewProjection = mul (xView, xProjection);
    float4x4 preWorldViewProjection = mul (xWorld, preViewProjection);

    Output.Position = mul(inPos, preWorldViewProjection);
    Output.Normal = mul(normalize(inNormal), xWorld);
    Output.TextureCoords = inTexCoords;
    Output.LightDirection.xyz = -xLightDirection;
    Output.LightDirection.w = 1;
    Output.TextureWeights = inTexWeights;
    Output.Depth = Output.Position.z/Output.Position.w;

    return Output;
}

MTPixelToFrame MultiTexturedPS(MTVertexToPixel PSIn)
{
    MTPixelToFrame Output = (MTPixelToFrame)0;

    float lightingFactor = 1;
    if (xEnableLighting)
        lightingFactor = saturate(saturate(dot(PSIn.Normal, PSIn.LightDirection)) + xAmbient);

    float blendDistance = 0.99f;
    float blendWidth = 0.005f;
    float blendFactor = clamp((PSIn.Depth-blendDistance)/blendWidth, 0, 1);

    float4 farColor;
    farColor = tex2D(TextureSampler0, PSIn.TextureCoords)*PSIn.TextureWeights.x;
    farColor += tex2D(TextureSampler1, PSIn.TextureCoords)*PSIn.TextureWeights.y;
    farColor += tex2D(TextureSampler2, PSIn.TextureCoords)*PSIn.TextureWeights.z;
    farColor += tex2D(TextureSampler3, PSIn.TextureCoords)*PSIn.TextureWeights.w;

    float4 nearColor;
    float2 nearTextureCoords = PSIn.TextureCoords*3;
    nearColor = tex2D(TextureSampler0, nearTextureCoords)*PSIn.TextureWeights.x;
    nearColor += tex2D(TextureSampler1, nearTextureCoords)*PSIn.TextureWeights.y;
    nearColor += tex2D(TextureSampler2, nearTextureCoords)*PSIn.TextureWeights.z;
    nearColor += tex2D(TextureSampler3, nearTextureCoords)*PSIn.TextureWeights.w;

    Output.Color = lerp(nearColor, farColor, blendFactor);
    Output.Color *= lightingFactor;

    return Output;
}

technique MultiTextured
{
    pass Pass0
    {
        VertexShader = compile vs_1_1 MultiTexturedVS();
        PixelShader = compile ps_2_0 MultiTexturedPS();
    }
}

//------- Technique: Water --------
struct WVertexToPixel
{
    float4 Position                 : POSITION;
    float4 ReflectionMapSamplingPos    : TEXCOORD1;

     float2 BumpMapSamplingPos        : TEXCOORD2;
 };

 struct WPixelToFrame
 {
     float4 Color : COLOR0;
 };

 WVertexToPixel WaterVS(float4 inPos : POSITION, float2 inTex: TEXCOORD)
 {
     WVertexToPixel Output = (WVertexToPixel)0;

     float4x4 preViewProjection = mul (xView, xProjection);
     float4x4 preWorldViewProjection = mul (xWorld, preViewProjection);
     float4x4 preReflectionViewProjection = mul (xReflectionView, xProjection);
     float4x4 preWorldReflectionViewProjection = mul (xWorld, preReflectionViewProjection);

     Output.Position = mul(inPos, preWorldViewProjection);
     Output.ReflectionMapSamplingPos = mul(inPos, preWorldReflectionViewProjection);
     Output.BumpMapSamplingPos = inTex/xWaveLength;

     return Output;
 }

 WPixelToFrame WaterPS(WVertexToPixel PSIn)
 {
     WPixelToFrame Output = (WPixelToFrame)0;

     float2 ProjectedTexCoords;
     ProjectedTexCoords.x = PSIn.ReflectionMapSamplingPos.x/PSIn.ReflectionMapSamplingPos.w/2.0f + 0.5f;
     ProjectedTexCoords.y = -PSIn.ReflectionMapSamplingPos.y/PSIn.ReflectionMapSamplingPos.w/2.0f + 0.5f;

     float4 bumpColor = tex2D(WaterBumpMapSampler, PSIn.BumpMapSamplingPos);
     float2 perturbation = xWaveHeight*(bumpColor.rg - 0.5f)*2.0f;
     float2 perturbatedTexCoords = ProjectedTexCoords + perturbation;

     Output.Color = tex2D(ReflectionSampler, perturbatedTexCoords);

     return Output;
 }

 technique Water
 {
     pass Pass0
     {
         VertexShader = compile vs_1_1 WaterVS();
         PixelShader = compile ps_2_0 WaterPS();
     }
 }

发布时间:2009/12/17 15:27:24  阅读次数:7129

2006 - 2024,推荐分辨率1024*768以上,推荐浏览器Chrome、Edge等现代浏览器,截止2021年12月5日的访问次数:1872万9823 站长邮箱

沪ICP备18037240号-1

沪公网安备 31011002002865号
